Kinarray S500
Highway Disaster Prevention Deformation Monitoring Radar
Technical Specifications
- Range
- 500m
- Accuracy
- 0.1~1mm
- Resolution
- 0.15m (distance), 1° (angle)
- Field of View
- ≥100°
- Power
- 15W
- Weight
- 3kg
Key Features
- Remote non-contact monitoring
- Real-time early warning system
- 24/7 unattended operation
- Wide temperature range: -40°C to +65°C
- IP65 waterproof rating
- Dual power supply (solar + battery)
- 4G/5G connectivity
- Automatic alerts via phone/WeChat
Overview
The Kinarray S500 is a specialized deformation monitoring radar designed for highway and railway slope safety. It provides remote, non-contact, real-time monitoring of slope deformation with millimeter-level accuracy.
Key Features
Remote Non-Contact Monitoring
- No need to install sensors on dangerous slopes
- Safe deployment away from hazardous areas
- Monitors entire slope surface simultaneously
Real-Time Early Warning
- Continuous 24/7 monitoring
- Automatic detection of deformation patterns
- Instant alerts through multiple channels
Rugged Design
- Operating temperature: -40°C to +65°C
- IP65 waterproof and dustproof
- Designed for harsh outdoor environments
Easy Deployment
- Compact size: 288 × 175 × 47 mm
- Lightweight: only 3kg
- Quick installation with standard mounting brackets
- Solar powered with battery backup
Technical Advantages
Compared to traditional monitoring methods:
| Traditional Methods | Kinarray S500 |
|---|---|
| Point measurement only | Full surface monitoring |
| Expensive installation (thousands per point) | Cost-effective wide-area coverage |
| Requires access to dangerous areas | Remote safe installation |
| High maintenance frequency | Low maintenance, unattended |
Applications

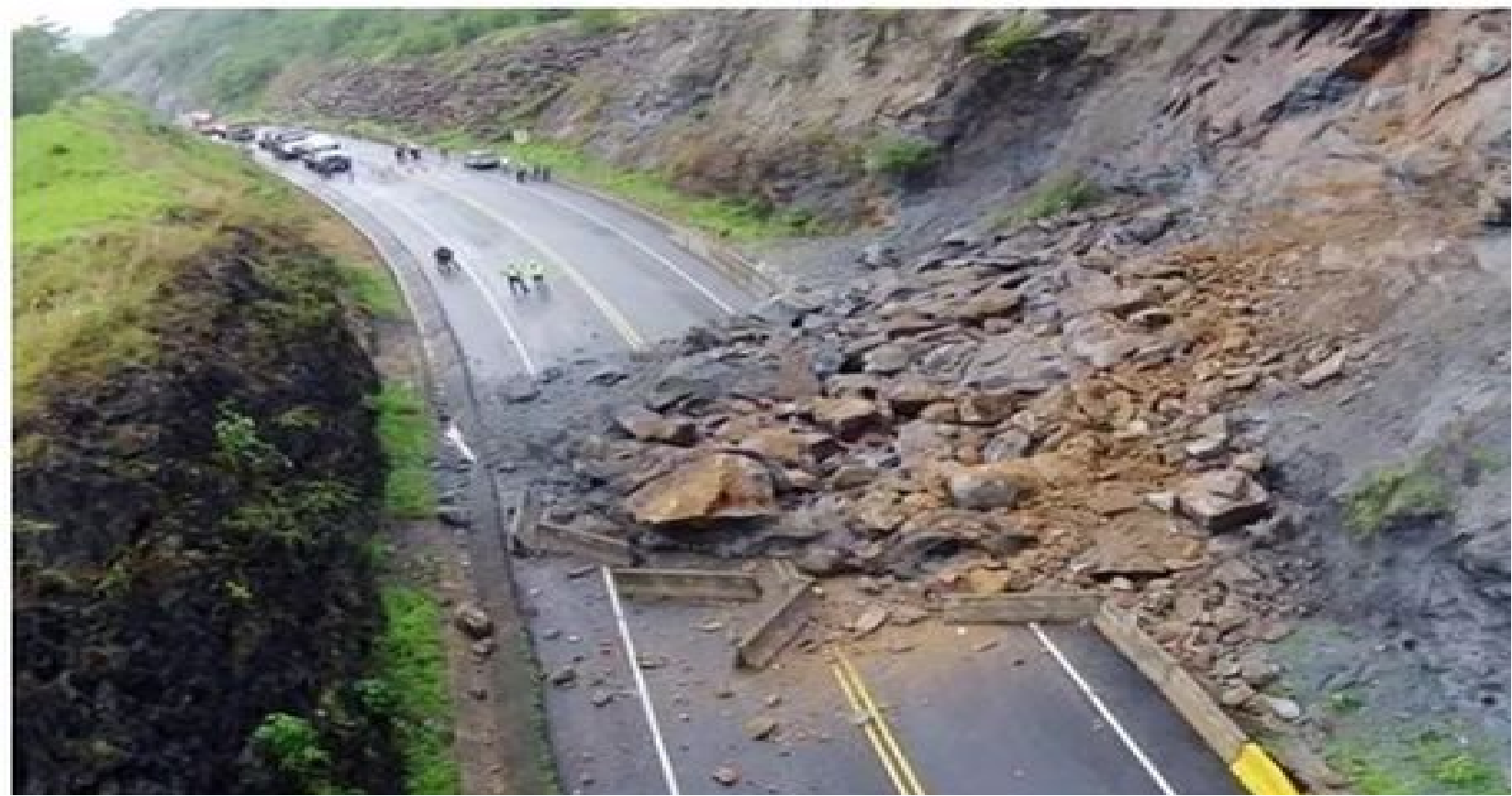

- Highway slope monitoring

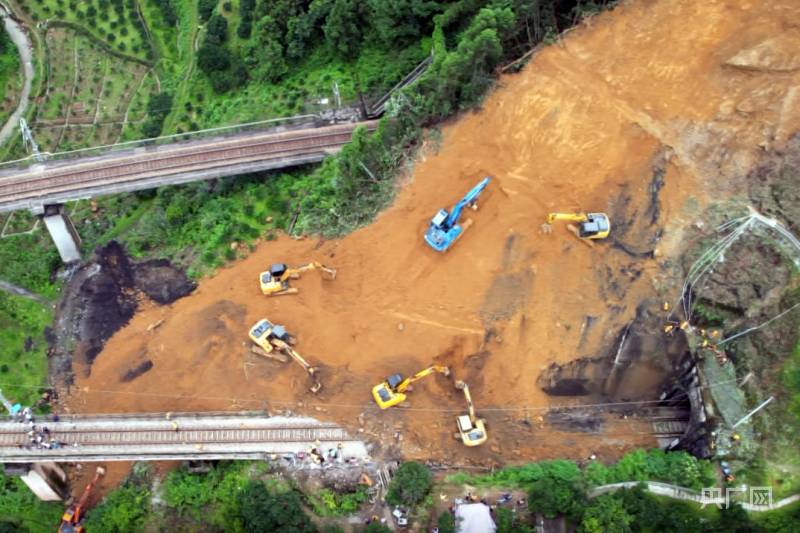

- Railway embankment safety
- Construction site monitoring
- Landslide early warning
- Infrastructure protection
System Integration
The S500 integrates seamlessly with:
- Cloud monitoring platforms
- Emergency response systems
- 4G/5G networks for real-time data transmission
- Automatic phone and WeChat alerts
- Remote OTA firmware updates
